Specification: φ1.83×7~φ4.6×14m
Processing capacity: 6.5-135t/h
Applied material: coal, cement, stone, sand, clay and ore
Applied area: portland cement making industry.
As the essential part of cement making equipment in mining industry, the development of cement ball mill makes the production amount of cement rising quickly. The earliest ball mill appeared in 19th Century. In 1870, on the basis of ball mill, the rod mill with uniform discharge granularity had been developed. In 1908, the rod mill was developed on the basis of ball mill. In 1930~1950s, the United States and Germany had developed cement ball mill and ore dressing ball mill, and then rod mill appeared.

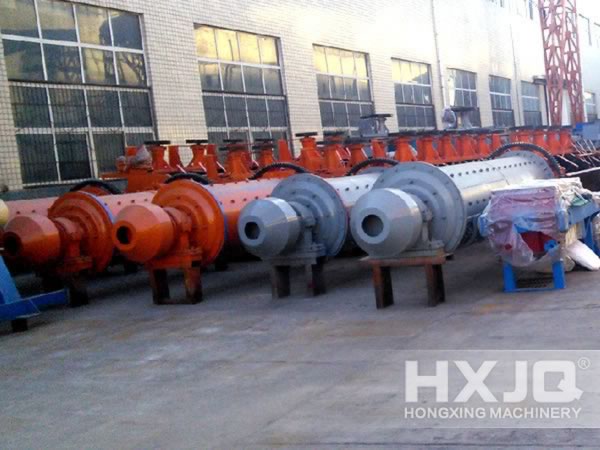

Cement ball mill is mainly used in the grinding of products or raw material in cement plants, which is also applied to the grinding all kinds of ores and other materials in metallurgical, chemical industry, electric power and other industrial and mining enterprises. It can be used for open circuit grinding, and also applies to the circle flow grinding with powder selecting machine. Cement ball mill has high adaptability to raw materials, continuous production, high crushing ratio, easy speed grinding fineness of product, etc. cement ball mill can realize dry production, which can also realize wet process production, and it can also realize the simultaneous operation of grinding and drying.
The development ball mill in China also has 100 years of history. As the indispensable equipment in the modern production of cement, cement ball mill plays a vital role in development process of cement industry. Therefore, it is important to choose the suitable cement ball mill. The China cement ball mill produced by our company adopts international advanced technology, which has high yield, small abrasion, high production efficiency, stable operation and reliable work. It is the best choice for cement production manufacturers.
Product specification (m) |
Milling form | Transmission form | Gear box | Motor power (kw) |
Production capacity (t/h) |
Total weight (t) |
|
Model | Speed reduction ratio | ||||||
Φ1.83×7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
Φ2.2×7.5 | Open flow | Brim | ZD70 | 5 | 380 | 8-10 | 64.8 |
Φ2.2×11 | Open flow | Brim | D110 | 35.5 | 630 | 12-13 | 104.6 |
Φ2.2×13 | Open flow | Brim | D110 | 35.5 | 630 | 16-18 | 114 |
Φ2.4×13 | Open flow | Brim | D110 | 35.5 | 800 | 20-23 | 130.6 |
Φ2.6×13 | Open flow | Brim | MFY100 | 19.5 | 1000 | 28-32 | 158 |
Φ3×9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 167 |
Φ3×11 | Circle flow | Brim | D140 | 42.8 | 1250 | 36-47 | 180 |
Φ3.2×13 | Open flow | Brim | D140 | 36.5 | 1600 | 45-50 | 225 |
Φ3.5×13 | Circle flow | Brim | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
Φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
Φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
Φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
Product specification (m) |
Milling form | Production capacity (t/h) |
Φ1.83×7 | Open flow | 6.5-8 |
Φ2.2×7.5 | Open flow | 8-10 |
Φ2.2×11 | Open flow | 12-13 |
Φ2.2×13 | Open flow | 16-18 |
Φ2.4×13 | Open flow | 20-23 |
Φ2.6×13 | Open flow | 28-32 |
Φ3×9 | Circle flow | 28-36.5 |
Φ3×11 | Circle flow | 36-47 |
Φ3.2×13 | Open flow | 45-50 |
Φ3.5×13 | Circle flow | 60-65 |
Φ3.8×13 | Open flow | 60-62 |
Φ4.2×13 | Open flow | 85-87 |
Φ4.6×14 | Circle flow | 120-135 |
