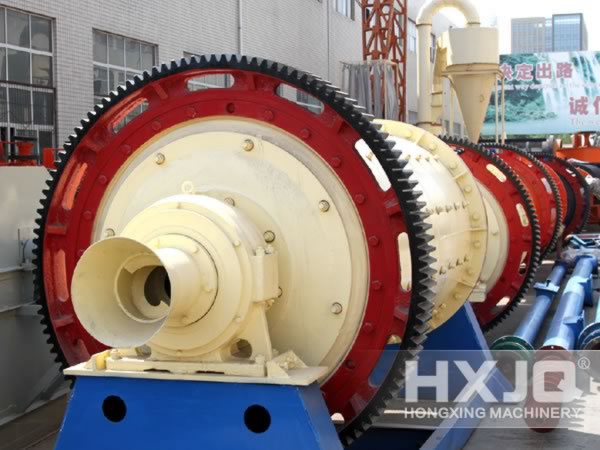

Dry Rod Mill

Dry Rod Mill

Processing ability: 0.5–500 t/h

Feeding size: ≤25 mm

Applied material: cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal.

  • Lead Ore
  • Limestone
  • Iron Ore
  • Copper Ore
  • Cement

Introduction:

The working principle of dry rod mill is almost the same as rod mill, but their slight difference lies in material shape and processed materials. It is mainly a process that the motor drives the cylinder to rotate through reducer, so as to complete the production objectives, which mainly operates through the falling phenomenon of the materials.

Dry Rod Mill

The motor of dry type rod mill rotates through the reducer or low speed synchronous motor directly through the surrounding big gear to rotate and the surrounding big gear will drive the rotating cylinder. The cylinder body is equipped with the appropriate grinding medium-steel bar. Grinding media will be elevated to a certain height in the role of centrifugal force and friction, and then it will be in the drop or drain fall down state, the grinding materials will receive impact to achieve the purpose of grinding.

Dry Rod Mill

Characteristics:

1. Power saving, more than 40% of the traditional rod mill equipment.

2. More uniform grain size and higher yield.

3. Adjustable discharging fineness.

Dry Rod Mill

Dry Rod Mill Technical Data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model Feeding
size
(mm)
Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180
