PE Jaw Crusher

PE Jaw Crusher

Processing capacity: 5-2200t/h

Feed opening: 150×250-300×1300mm

Feeding size: 125-250mm

Applied material: limestone, quartz, copper ore, iron ore, fly ash, coal powder, slag, clay.

  • Limestone
  • Quartz
  • Iron Ore
  • Copper Ore
  • Fly Ash

Introduction:

PE jaw crusher is also called single toggle jaw crusher, which is mainly used for the coarse crushing of materials. PE jaw crusher is the large sized crushing equipment with independent research, development, design and production of our company, which has high crushing ratio, high yield, uniform product size, simple structure, reliable work, convenient maintenance, low running cost and other characteristics. It is suitable for crushing materials with less than 320MPa crushing compressive strength, which can be widely used in mining, smelting, building industry, highway, railway, water conservancy, chemical industry and other industries.

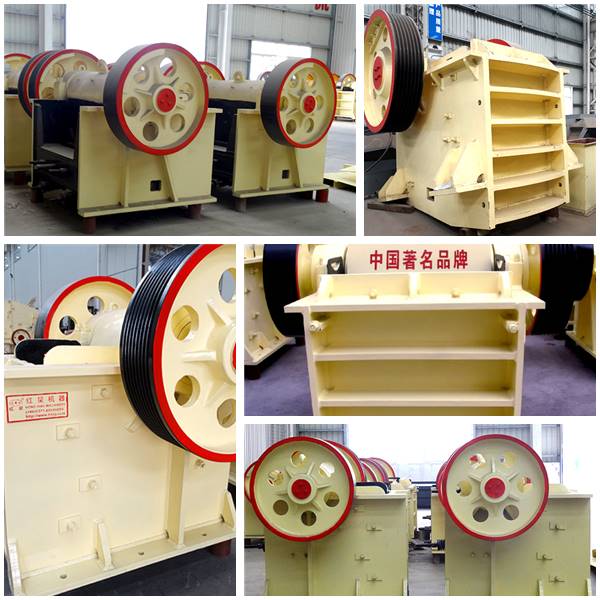

PE Jaw Crusher Semi-finished Products

PE jaw crusher is mainly composed of a frame, an eccentric shaft, a big belt wheel, the flywheel ,the movable jaw, a side guard plate, elbow plate, plate elbow back seat, gap adjusting screw rod, a reset spring, a fixed jaw and a movable jaw plate and other components, wherein the elbow plate also plays the role of insurance.

PE Jaw Crusher

Working Principle:

When jaw crusher is working, the motor drives the eccentric shaft to rotate through the belt wheel, so that the movable jaw will move closely and leave far away from the fixed jaw periodically. Through the squeezing, rubbing, grinding and other multiple crushing of materials, the material will be crushed from big to small, and then gradually fall off until discharged from the discharging mouth.

Features:

1. Simple structure, convenient repair, stable performance, low operation cost, high crushing ratio;

2. Deep crushing cavity and no dead zone, which improves the feeding ability and yield;

3. Big crushing ratio, uniform product size;

4. The gasket adjusting device of discharge port is convenient, reliable, large adjusting range, which increases the flexibility of the equipment;

5. The lubrication system is safe and reliable, convenient replacement of the spare parts, small maintenance workload;

6. Simple structure, reliable work, low operating costs;

PE Jaw Crusher Work Site

7. Energy saving is up to 15% ~ 30%;

8. Large adjusting range of the discharge port can meet the requirements of different customers;

9. Low noise, less dust.

PE Jaw Crusher Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-64
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105
